22’W x 24’L x 12’H – (Peak Style)

$3,499.00

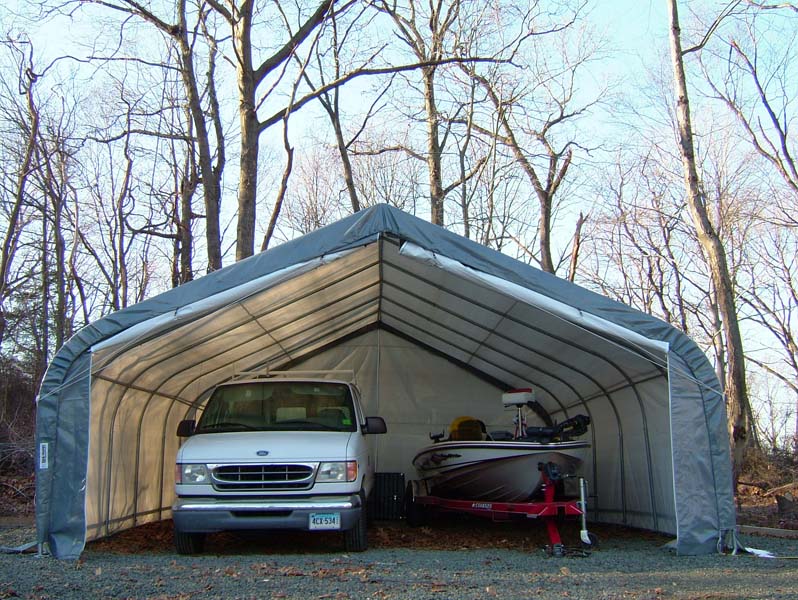

This peak style portable garage measures 22 feet wide by 24 feet long and 12 feet high. It makes for a great workshop or car storage option because of the high side wall clearance. This option fits two standard size vehicles and comes with 2 roll-up door kits for drive-thru accessibility.

As with all our products, the pre-drilled frame can be easily assembled with minimal hand tools. The main cover and doors are made from long life UV resistant and fire retardant poly with fabric backing. This instant garage comes in green and grey color options.

Included

  • 10 oz. UV Treatment Cover
  • 2 Triple Zipper Doors- 20’W x 6’6″H
  • 14 Cable Earth Anchor Kit
  • 2-3/8″ Galvanized Steel Frame
  • Roll-Up Door Kit for Front Door Included

SKU: N/A Categories: ,

Description

Complete Product Details

Exclusive Features

  • Heavy Duty Galvanized Finish on All Steel Frame Components for Maximum Strength & Long Life
  • Easy Bolt Together Design – All Pre-drilled & Cut
  • Wind Brace Support on all 4 corners
  • Two (2) Triple Zipper Doors with Bottom Pockets
  • One (1) complete Roll-up Door Kit
  • Protective Plastic Tube End Caps – All Open Ends
  • Standard Thread Plated Hardware Kit with Retaining Nuts & Protective SS Washers
  • Quick Assembly Wrench included
  • Heavy Duty Poly Rope for Main Cover Tie Down
  • Heavy Duty Grommets on Cover & Doors
  • Six Box Shipment – easily unloaded and transported
  • Average Install time – 2 hours

Easy Fit Together Design – all Pre drilled & Cut

Pipe Size

Designed For Heavy Snow Load

Click here Fabric Details

Product Packaging Details

permanent anchors

Click here for Steel Tubing Details

Standard Specifications

  • Product Size 22’ Wide x 24’ Long x 12’ High
  • Arches Seven (7) on 48” Spacing 2-3/8” diameter frame members
  • Standard End Door Size 20’ Width X 6’6″ Height
  • Available Colors Outer Colors: Green, Gray or Tan
    All Interiors: Bright White Only
  • Shipping Weight 789 lbs shipped in Six (6) boxes Shipped via Motor Freight
  • Pallet Dimensions 40″W x 89″L x 31″
  • Box Dimensions
  • Box 1: 60″ Long x 15″ Wide x 5″ High
  • Box 2: 88″ Long x 11″ Wide x 5″ High
  • Box 3: 50″ Long x 18″ Wide x 10″ High
  • Box 4: 65″ Long x 26″ Wide x 9″ High
  • Box 5: 60″ Long x 15″ Wide x 5″ High
  • Box 6: 67″ Long x 23″ Wide x 9″ High
  • Main Cover
  • UV Protected Fabric Backed Poly Material 10 oz. Weight
  • Fire Retardant Standard
  • Main Cover & Doors meet CPAI -84 Section 5
  • Anchors
  • Fourteen(14) 36″Anchors with U-Bolts & Drive Rod
  • Stock Numbers
  • GA222412HGN, GA222412HGY, GA222412HTN

Product Documentation

  • the product spec sheet
  • the assembly manual

Additional information

Weight 789 kg
Dimensions 24 × 22 × 12 cm
Color :

Green, Gray, Tan
